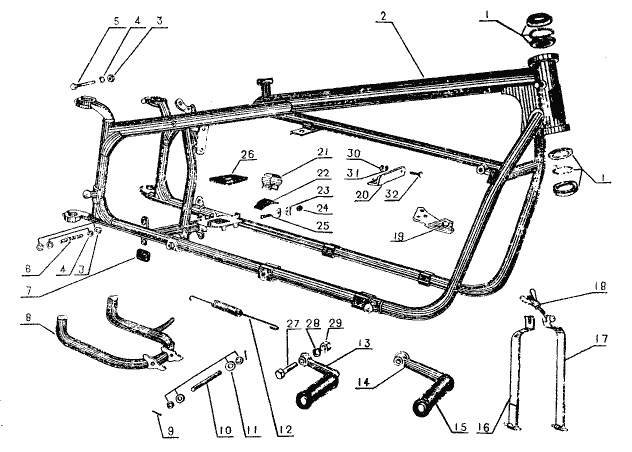

CJ750 FRAME ASSEMBLY
OHV Overhead Valve M1S M1 Super SV Sidevalve M1 M1M
Part #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CJ 750 Parts name
Tapered steering bearing
Frame
Nut
Washer
Bolt
Exhaust fixing bolt - steel
Brake rubber
Centre stand /
Solo Bike stand
Cotter pin
Stop support shaft
Washer
Centre stand spring
Foot peg - short
Foot peg - long
Foot rubber pegs pedal rubber
2
1
6
6
2
2
1
2
1
4
1
3
1
4
Part #
16
17
18
19
20
21
22
23
24
25
27
28
29
30
CJ 750 Parts name
Battery strap- short
Battery strap - long
Battery strap wing nut
Engine body link support
Angle iron
Clip
Rubber spacer
Spacer
Nut
Screw
Spacer
Bolt
Washer
Nut
Nut
Qty
1
1
1
1
1
1
1
2
1
1
1
2
4
4
1
Part #
31
32
8-12
13-15
14-15
16-18
21-25
*
*
Qty
1
1
1
3
1
1
1
Source: Chang Jiang750 Hongdu Aviation Industry Group Illustrated CJ750 Parts Manual  or  CJ750 workshop manual
